제품 상세 정보:
결제 및 배송 조건:
|
| 크기: | 9 -21 1/4 | 압력: | 5000 psi |
|---|---|---|---|
| 색: | 백색 빨강 | 포장: | 나무 상자 |
| 작동 온도: | -60C~390C(-75F-734F) | 매체: | 석유, 물, 가스, 머드 |
| 강조하다: | 70MPa Oilfield Casing Head,5000KN Oilfield Casing Head,Wellhead PR1 Drill Spare Parts |
||

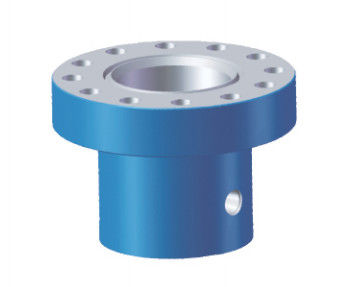

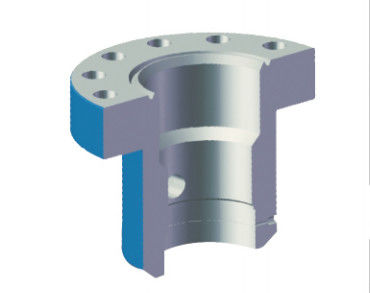

Casing Head for Oilfield Wellhead and Christmas Tree Connection
Product Descrption
The casing head is a kind of part connecting casings and wellheads. It is used as supporting the weight of technical casing and production casing, sealing the annular space between the casings, and installing BOP stacks. It provides a transition joint for the tubing head, Christmas tree and other wellheads. It can also supply cement, monitor & control well s sinking, and inject balance liquids etc by the two side outlets on the casing head housing.
Casing Head provided by our company are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.
The casing head is classified into two types, including the bottom drive head and the middle drive head spool. It is a key component connecting the casing pipe and various wellhead devices.
Casing Head-Bottom Slip Connection
(1) Connect surface casing by type WD slip.
(2) Adopt type BT secondary seal structure.
(3) Accurately calculate casing string's length is not necessary.
(4) Can not be affected by surrounding environment, climate, etc.
(5) Easy, rapid, safe and reliable in installation.
(6)Can apply to different sizes casing, such as: 30",20",13-3/8",12-1/4",9-5/8",7",5-1/2".
(7)We can manufacture a variety of bottom thread such as CSG, LCSG, BCSG, TM, for the connection between casing head and surface casing.
Main Specifications of TR Wellhead Casing Head
| Casing Program | 20"×133/8" ×95/8" ×7" or 51/2" |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 | |
| Load Capacity | Mixmum 5000KN |
| Hanger Specification | 4",41/2",5",51/2",7" |
| Working Pressure | 35MPa~70MPa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U(-29℃~121℃) |
| Material Class | AA~FF |
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
