제품 상세 정보:
결제 및 배송 조건:
|
| 크기: | 3 3/4" (95.3mm) ~26" (660.4mm) | 압력: | 2000-20000 psi |
|---|---|---|---|
| 포장: | 나무 상자 | 보증: | 1년이요 |
| 처리식: | 위조 | 재료: | 탄소강 |
| 강조하다: | API 6A Mandrel Casing Hanger,20000 Psi Mandrel Casing Hanger,7" Mandrel Casing Hanger |
||
7" API 6A Wellhead Casing Head Tubing Hanger for Oilfield
Product Descrption

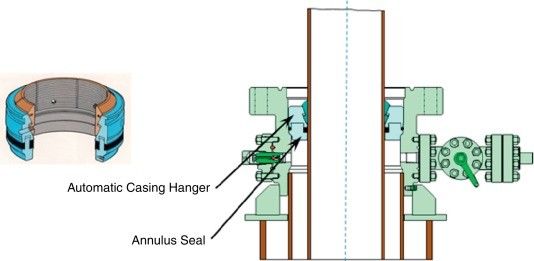

Casing hanger is inside the casing head and used for supporting the casing loads, and sealing the annular space between casing and tubing. Both slip type and mandrel type casing hangers are supplied by us.

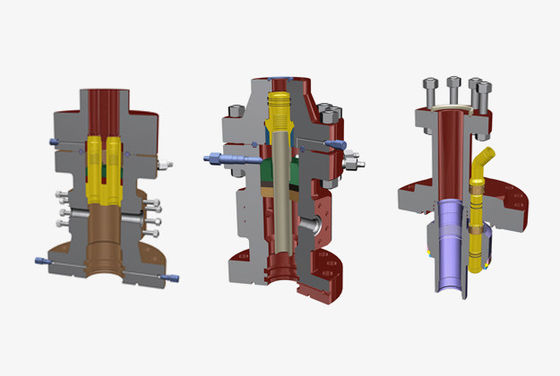

There are two major types of casing hangers, i.e.the threaded (mandrel) type and the slip-type. The slip-type casing hanger comprises a number of models such as G.W. WD and WE. The model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force. The model W hangers are structured to enable the dead-weight of the casing to energize the seal to function. Both the model WE and model G hangers operate by energizing the seal manually.
The slip type casing hanger comprises a number of models such as:
G type casing hanger
W type casing hanger
WD type casing hanger
WE type casing hanger
Main Features of Our Wellhead Casing Hanger
Technical Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and cementing accessories since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
Xi'An TianRui Petroleum Machinery Equipment Company Limited will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
